Hydraulic Telescopes
Seamlessly compatible with Techmine hydraulic pumps, 2T rated, and built from corrosion-resistant aluminium alloy.
Techmine Specification
Hydraulic Telescopes

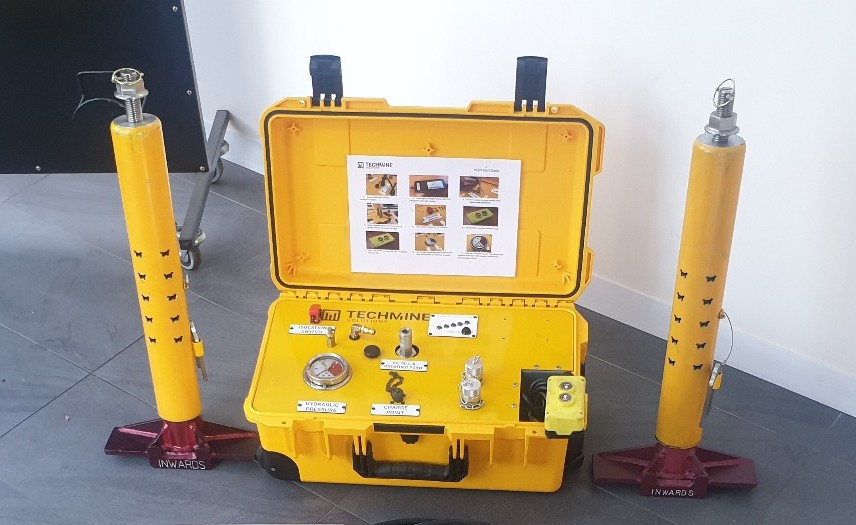

Techmine’s lockout telescopes eliminate the risk of working under a suspended load, supported by a tuned portable hydraulic pump designed not to exceed the lifting capacity of the equipment. The system provides 250 mm, 350 mm, and 450 mm lift heights and includes a weight-lifting indicator on all pumps for added safety and accuracy. Built from high-strength aluminium, the design enables safe lifting of both trough and return belts across conveyor sizes up to 3.2 metres
Material: Aluminium
Lifting Range: 250mm, 350mm
WLL (Working Load Limit): 1T
Weight: 6.75kg
Lifting Devices: AS 4991-2004
Welding Of Aluminium Structures: AS 1665-2004
Structural Design Actions: AS 1770.0-1770.1
Aluminium Structures: AS 1664.1
