Mechanical Telescopes

Techmine Specification

Mechanical Telescopes

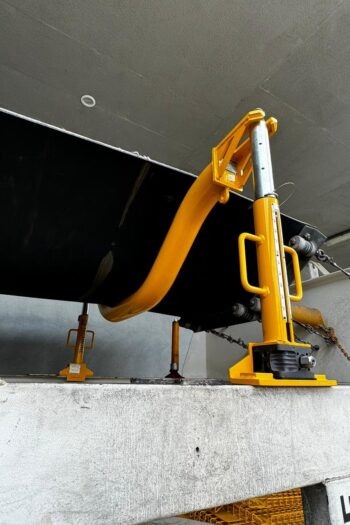

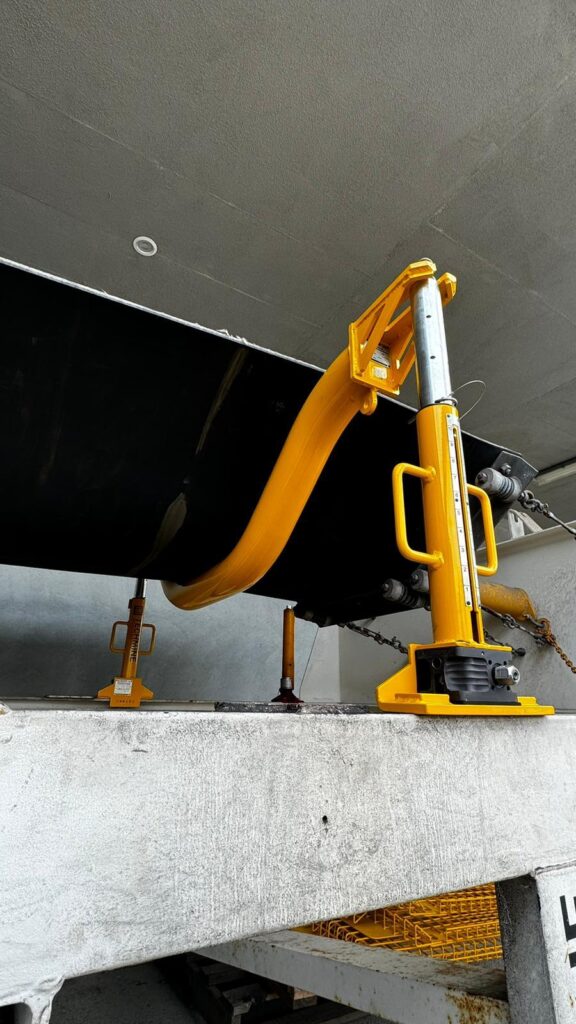

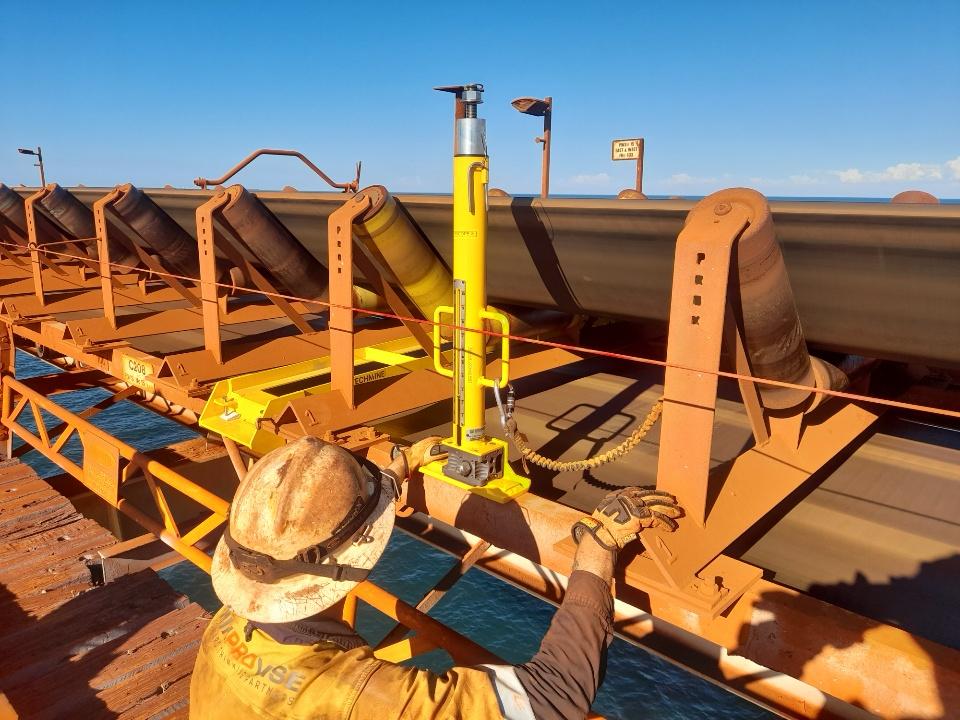

Techmine Mechanical Telescopes are a modular, drill-operated lifting solution designed to work interchangeably with existing Techmine lifting beams.Supplied as separate beam and lifter units, the system allows direct assembly onto the mechanical telescope via an integrated magnetic base and is available exclusively in the 2-tonne configuration.. Each unit is operated using two high-torque 80 Nm, 500 W battery drills, with drive points on either side to enable controlled and synchronised lifting when used in pairs. Integrated lift indicators provide clear visual confirmation of uniform lift height between telescopes, reducing uneven loading. The system supports both trough and return belt lifting, can lift and return belts simultaneously, is fully serviceable and repairable, and can be manufactured or customised to suit unique belt configurations, servicing belt widths up to 3200 mm.
