A redesigned valve handling frame developed by Techmine Solutions that allows a valve to be lowered and automatically self-centred via gravity in a single hoist operation, eliminating the previous two-step procedure. Key improvements include swivel castors on all corners for easy maneuvering, enclosed ends to prevent calcium build-up, a tube-insert locking system for secure and user-friendly valve positioning, and reinforced structural elements throughout.

Bermad Value

Problems Idenified

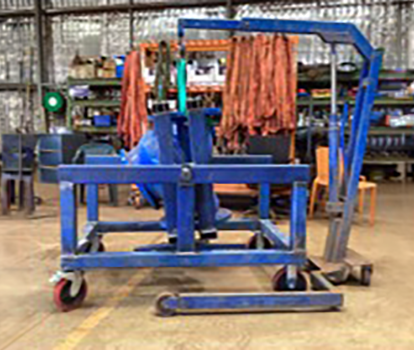

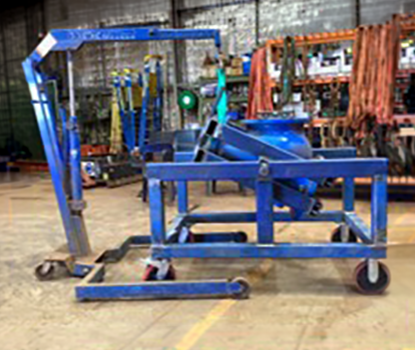

  • Valve installation required a two-step procedure, a hoist to lower the valve onto the frame, then repositioned again to rotate it into the correct orientation.
  • Fixed wheels made maneuvering the frame difficult when positioning the valve.
  • Open ends caused calcium build-up in internal components, impeding the pivoting motion.
  • Spring latches used to lock the valve in position were excessively heavy and prone to bending.
  • The frame lacked sufficient structural integrity.
Bermad Value

The Solution

  • The pivot point was redesigned so gravity automatically self-centres the valve, eliminating the two-step hoist procedure.
  • Swivel castors fitted to all corners greatly improved maneuverability.
  • Open ends were enclosed, preventing calcium build-up and ensuring smooth pivoting.
Bermad Value Completed

Key Features & Benefits

  • A tube-insert locking system was introduced, engaged once the valve reaches the correct orientation, more robust and user-friendly than the previous spring latches.
  • Reinforcing elements were added throughout the frame, significantly improving structural integrity.
