Drop Bottom Bins

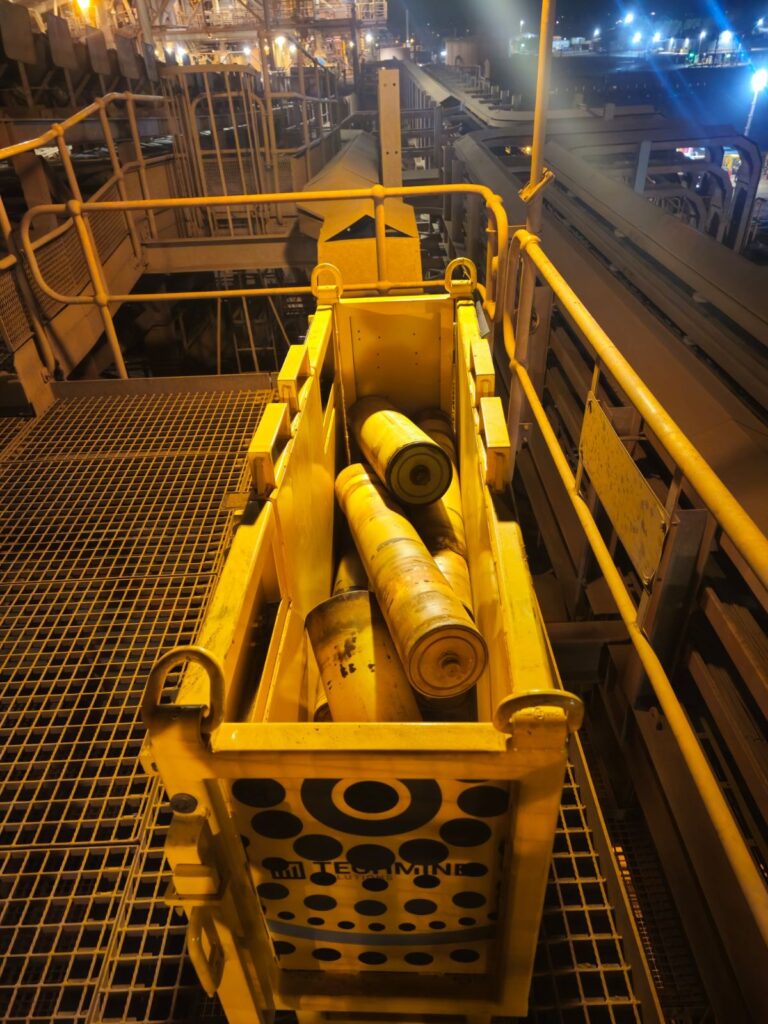

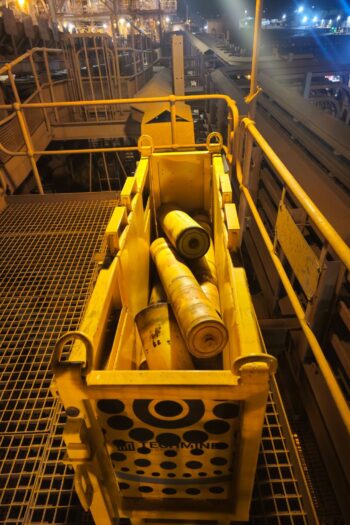

Lightweight, load-tested drop bottom bins designed for safe, efficient transport and unloading of waste materials and rollers during conveyor maintenance.
Techmine Specification
Drop Bottom Bins

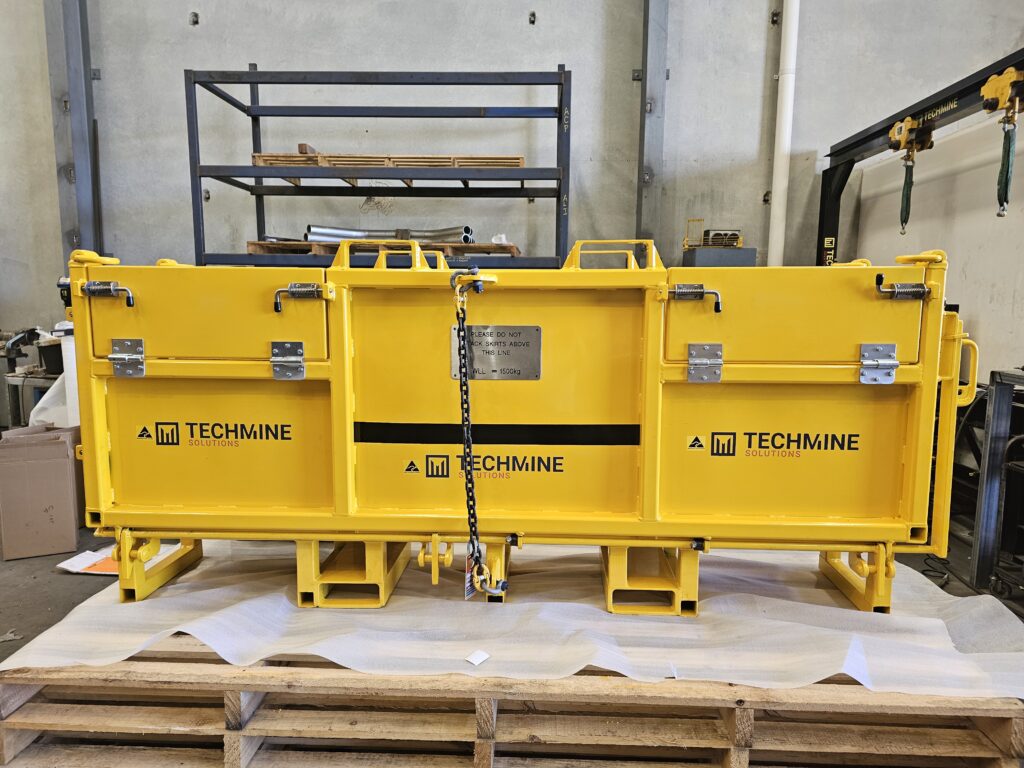

The Techmine Drop Bottom Bin features an ultra-lightweight yet robust alloy construction, engineered and third-party certified for its working load limit. A self-latching bottom allows fast and controlled unloading, improving workflow efficiency during maintenance. The bin operates easily through lever controls, and its ergonomic layout supports safe loading and removal of rollers, skirt plates and other materials. Width and length can be customised to suit site requirements, and integrated secondary safety lugs with chains and shackles provide additional security during lifting and transport.
Material: Aluminium and Steel
Dimensions: Customisable
WLL (Working Load Limit): 1.2T, 1.5T, 1.8T
Weight: From 100kg
Structural Design Actions: AS 1170.0-1170.1
Aluminium Structures: AS 1664.1
Steel Structures: AS 4100
Lifting Devices: AS 4991-2004
